A new Project, LCD displaying data?!?

Yesterday i postet a yoke with some LCD screen I have.
Well, Today I found somewhere a intresting PDF...
http://www.kirov.ru/~ua4nx/fail/HT1611.pdf

About a lcd screen Almost similar .

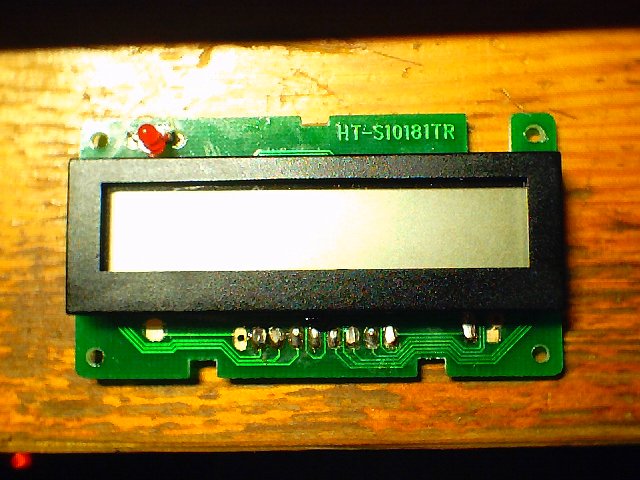

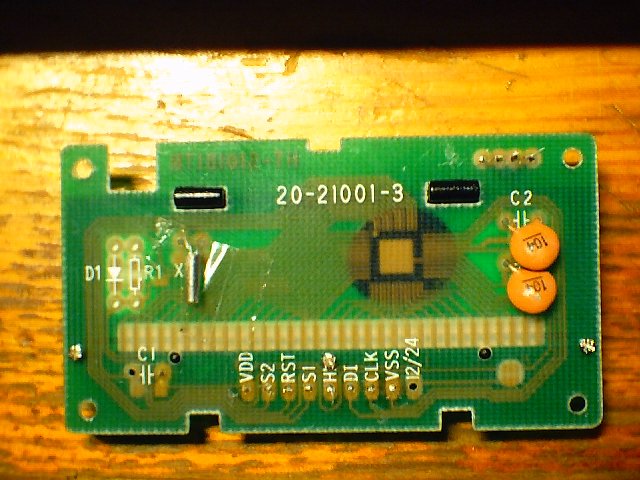

ANyways, Here are 2 Shots more detailed . A HT-S10181TR . I think its from Holtek

See the VDD = 1.5 V
VSS = Ground
12/24 = Conect to ground and the clock is displayed as 12 Hours

I remember now again, i got it from a older Telephone with Number display (No, not a mobile thing like the N 3310) This thing is now being used as Junk, but its new destination is my PC front pannel... (Cheap Case mode with no use at all) ;-)
